Novus所提供的復合軟管系統管體均在荷蘭著名的專業復合軟管生產商Gutteling BV工廠生產， 管體均獲得ABS,BV,DNV,LR,NK,KR,RMRS等船級社等第三方檢測機構的形式認可。
NCT復合軟管由
內加強鋼圈（A）
外加強鋼圈（E）
和輸送介質兼容的接觸介質層（B）
密封加強層（C）
以及能抗臭氧耐磨的彩色有機纖維外套（D）組成的柔性管體
外套有多種顏色以區分不同的軟管類型，甚至可以根據客戶的要求訂制顏色。
需要了解配置或者選型，請聯系我司技術團隊。
我們限于在常態介質輸送場合同
與金屬軟管和橡膠軟管優勢比較：
所供的型號：

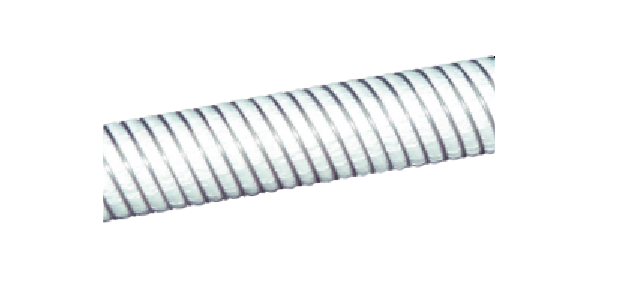

Novus Oiltrans NCT-810系列復合軟管專為輸送碳氫化合物、溶劑、100%芳香烴類化合物等化學介質所設計。
The Novus Oiltrans NCT-810 series composite hoses are designed for conveying hydrocarbons, solvents, 100% aromatics etc.
尺寸型號：

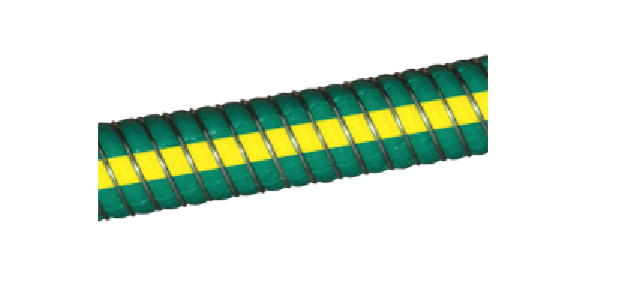

Novus Chemtrans NCT-820系列復合軟管專為輸送對聚丙烯內襯以及聚丙烯涂層內鋼圈沒有腐蝕的化學品所設計。
The Novus Chemtrans NCT-820 series composite hoses are designed for those chemicals which do not affect the PP lining and PP coated steel inner wire.
尺寸型號：
Novus Chemtrans NCT-821系列復合軟管專為輸送對聚丙烯內襯以及不銹鋼內鋼圈沒有腐蝕的化學品所設計。
The Novus Chemtrans NCT-821 series composite hoses are designed for those chemicals which do not affect the PP lining and stainless steel inner wire.
尺寸型號：
Novus Chemtrans NCT-822系列復合軟管專為輸送絕大多數的化學品、氯氫化合物以及酸類等對PTFE內襯以及不銹鋼內鋼圈沒有腐蝕的化學介質所設計。
The Novus Chemtrans NCT-822 series composite hoses are designed for a wide range of chemicals, chlorinated hydrocarbons and acids which do not affect the lining and the stainless steel inner wire.
尺寸型號：
Novus Vaportrans NCT-830系列復合軟管專為抽取回收油輪、化學品船、駁船以及碼頭液體接收站的化學品、碳氫化合物的蒸氣所設計，也可以被用在油罐、槽罐車內的化學品、油類蒸氣回收，以實現節能減排。
The Novus Vaportrans NCT-830 series composite hoses are designed specifically for chemicals as well as for hydrocarbons vapor recovery service on ships,barges and in marine terminals. It can also be used to recover vapors in tank and railcar application, to reduce the emission and the pollution of environment.
尺寸型號：
Novus Subtrans NCT-840 系列復合軟管專為軟管浸沒在某化學介質的同時實現介質輸送場合所設計，此時軟管內外表面所接觸的化學介質必須對軟管的內表面層、不銹鋼內鋼圈、軟管外套以及外加強圈沒有腐蝕作用。
The Novus Subtrans NCT-840series composite hoses are designed for submersible use in chemicals which do not affect the lining and cover and the stainlesssteel inner and outer wire.
尺寸型號：
Novus LPGtrans NCT-850系列復合軟管專為在船舶、駁船、輪船碼頭接收站等場合輸送低溫至-50℃的液態化學介質所設計, 能輸送包括以下種類的化學介質。
The Novus LPGtrans NCT-850 series composite hoses are special designed for use with fully refrigerated conveyable fluids down to -50 ℃ on ships,barges and in marine terminals. This application is including the followings mediums：Ammonia, Acetaldehyde, Butadiene, Butane, Propane, Butylene,Dimethylamide, Ethylamine, Ethyl Chloride, Methyl Acethylene, Methyl Bromide Propane, Propylene, Vinyl Chloride, Refrigerant Gases.
尺寸型號：
Novus LNGtrans NCT-860系列復合軟管專為在槽罐車、廠區、船到儲運碼頭等場合輸送溫度低至-196℃液態LNG所設計。
The Novus LNGtrans series composite hoses are especially designed for use with fully refrigerated conveying fluids down to -196℃ such as LNG in rail, railcars,inplant, ship to shore etc.
尺寸型號：
。Novus BioDieseTrans生物輸送軟管是針對生物柴油PH值較低，根據間歇性輸送和持續輸送兩種工況，選擇了抗腐蝕的尼龍、PTFE作為內襯；尼龍內襯多孔易滲水，因此在不工作時，含水量高的生物柴油就不會積累在軟管中，因此適合于間歇性工況；PTFE內襯致密光滑，可以防止軟管吸收生物柴油，且沖洗方便，清潔后方便快速使用于其他工況。
The Novus BioDieseltrans NCT870 series composite hoses are designed specially for conveying continuous Bio-Diesel products. The hose is lined with material which will notbe effected by the Esterified vegetable oils, which are on ingredient of Bio-Diesel products.There are two different hoses depending on application: Multi-Bio Green lined with nylonfor intermittent service only. Nylon is porous and product can not be left in the hose while not in service. Multi-Bio Green lined with PTFE for an indefinite service life, the PTFE liner prevents the hose against any absorption of the products. The hose is easy to flush and to clean and therefore quickly reusable for other applications.
尺寸型號：

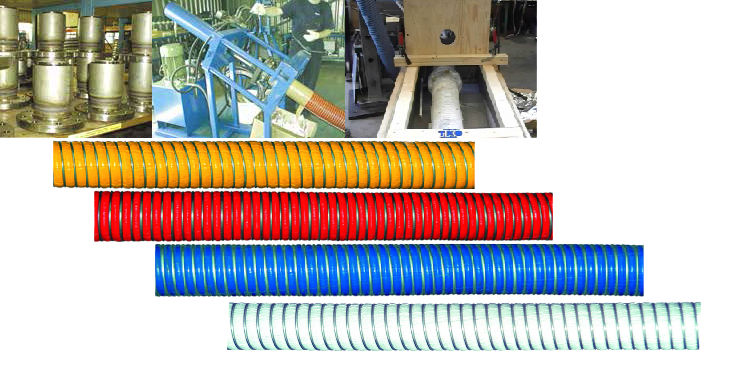

Novus引進全套Gutteling設備，在裝配連接復合軟管和接頭時，首先把軟管旋轉到密封膠充注的接頭護套螺旋環腔內，然后利用專門的液壓裝置環向擠壓收縮接頭護套的外圈，以保證軟管被安全緊固在接頭護套內。這樣的雙重密封工藝，確保了復合軟管使用在船對船介質輸送等非常惡劣的工況下，也能安全使用，避免發生軟管和接頭脫落而造成環境污染等重大事故。
Novus系列復合軟管能和多種材料、不同標準以及多種形式的接頭連接，以滿足客戶現場的連接輸送要求，我們有以下材料類型可以選擇：/
不同類型材料：
